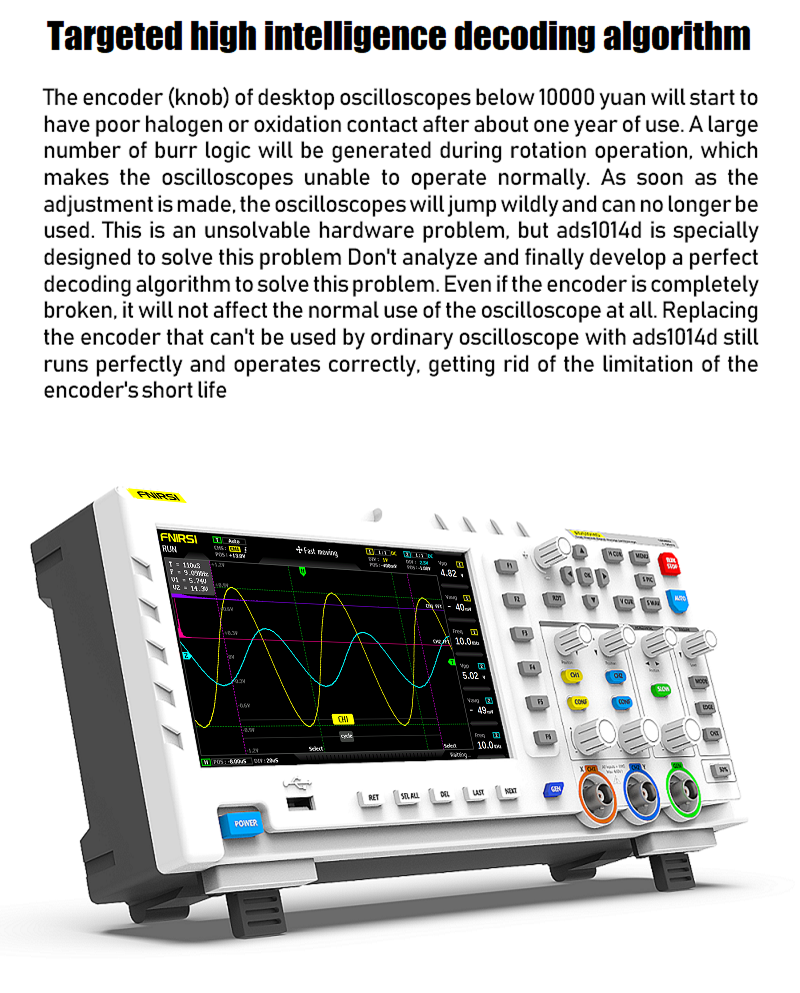

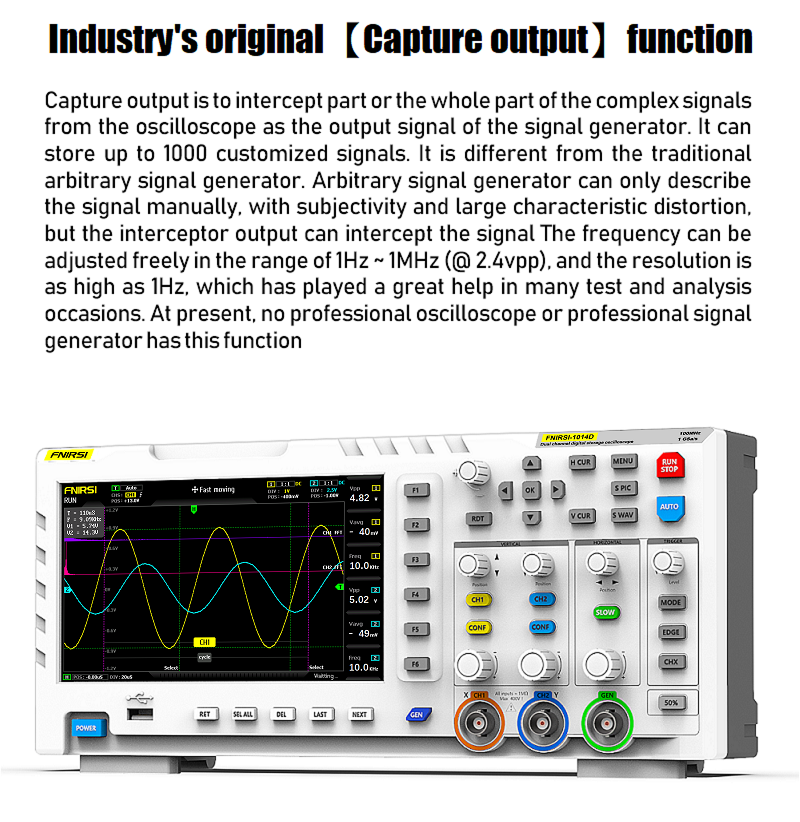

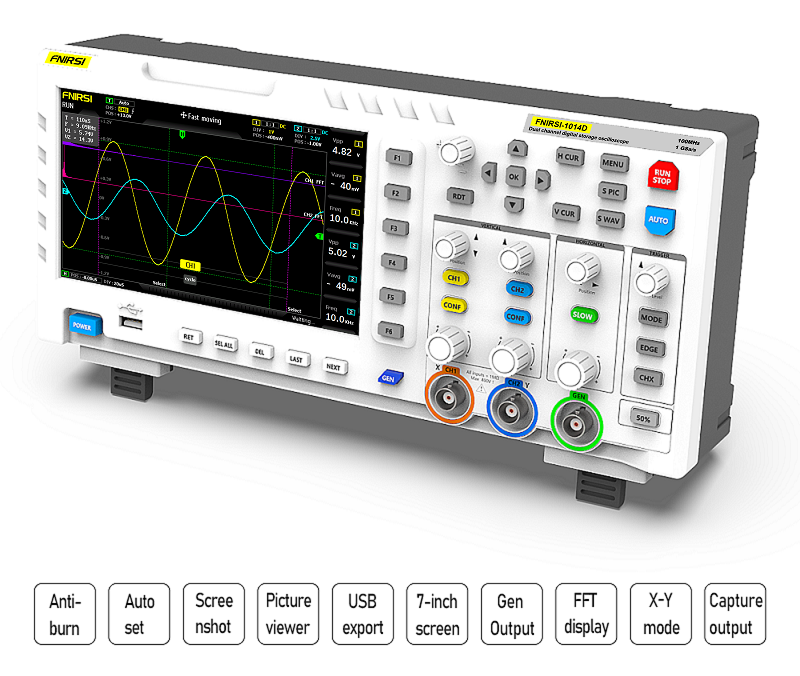

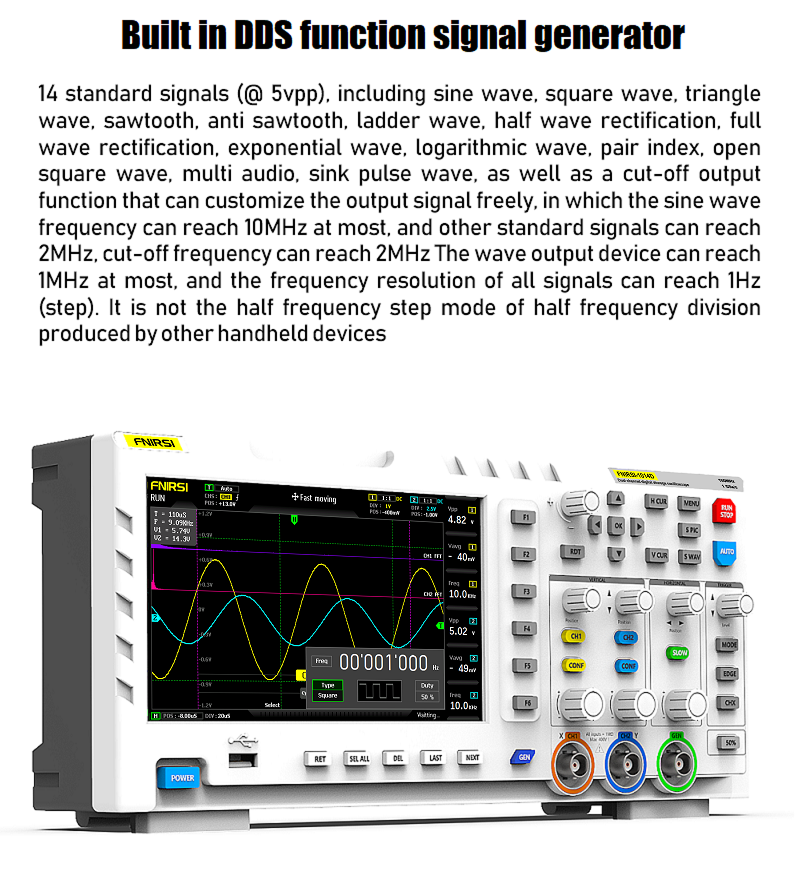

FNIRSI 1014D Digital Storage Oscilloscope 100MHz Dual Channel Oscilloscope Signal Generator

As low as $175.99 Regular Price $219.99
In stock
Only %1 left
SKU
LZ1000628037
Add to Wish List Add to Compare
FNIRSI 1014D Digital Storage Oscilloscope 100MHz Dual Channel Oscilloscope Signal Generator

Type:
Digital Storage Oscilloscopes
Model Number:
1014D
Bandwidth:
100mhz
Channels:
2
Sampling rate:
1GSa/s
Storage depth:
240Kbit
Memory depth:
240Kbit
Input resistance:
1MΩ
Coupling mode:
AC/DC
Trigger mode:
Single, Normal, Auto
External trigger voltage:
0-40
Extension ports:
USB picture export

Packaging & delivery

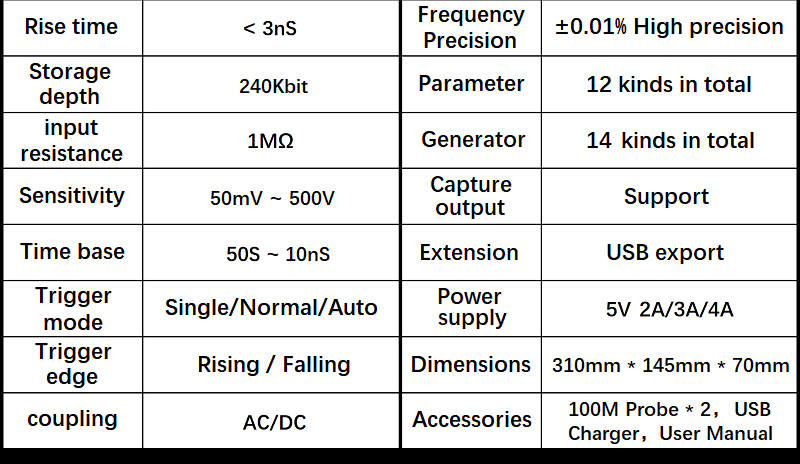

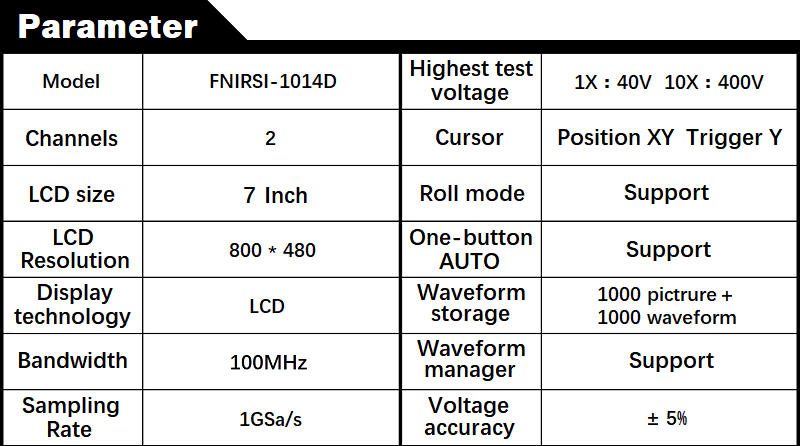

Product Description
Analog bandwidth
100MHz * 2
Number of channels
2 channels
Maximum real-time sampling rate
 1GSa/s
Vertical sensitivity
50 mV/div ~ 500 V/div
Horizontal time base range
50S/div ~ 10nS/div
Maximum test voltage
40 V (1X probe), 400 V (10X probe)
Storage depth
240Kbit
Input resistance
1MΩ
Input resistance
8bits
Coupling mode
AC/DC
Trigger mode
Single, Normal, Auto
Trigger edge
Trigger edge
External trigger voltage
0 – 40 V
Display
7 inch - 800*480
Extension ports
USB picture export
Size
340mm x 140mm x 70mm
Bodyweight
1.5kg

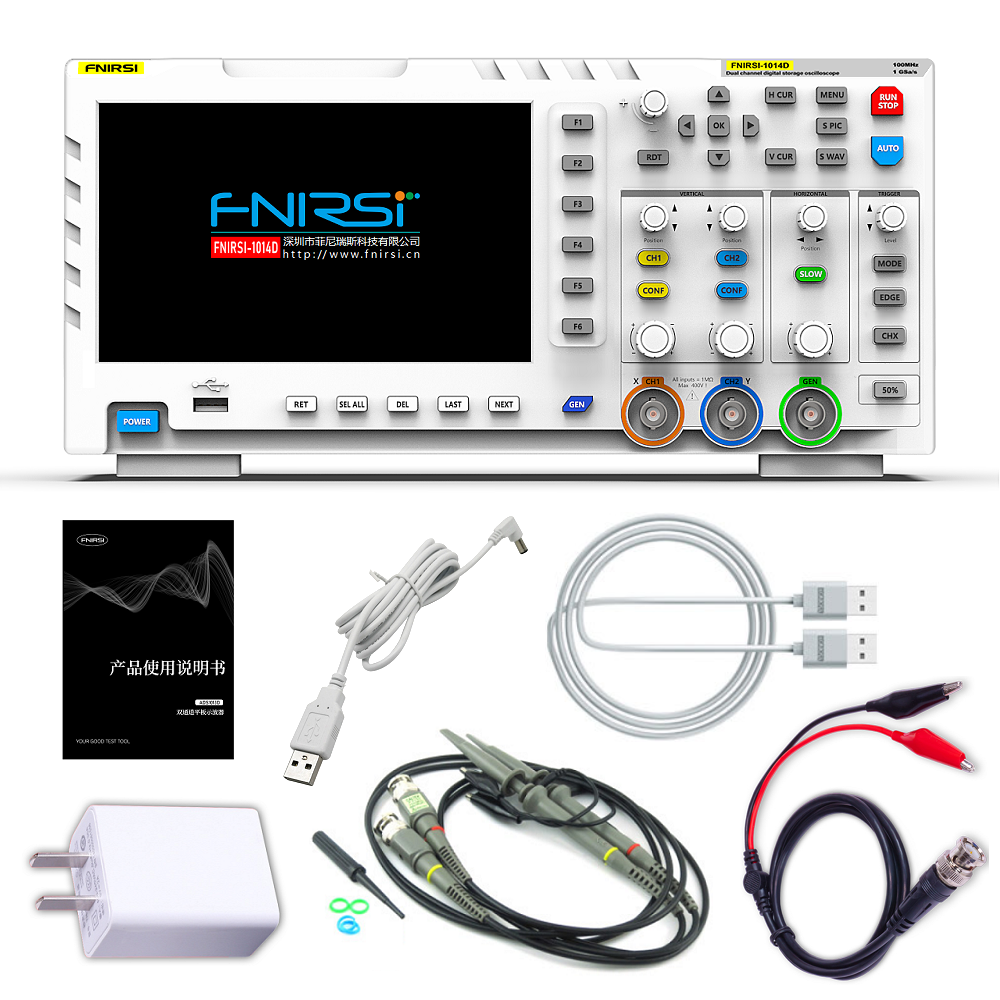

quantity

1x
FIRST-1014D oscilloscope host
2x
Matching 100MHz probe(1X and 10X)
1x
Crocodile clip
1x
5V2A Power Adapter
1x
USB data line
1x
User manual (English)
