OWON HDS2102S 3 in 1 Digital Oscilloscope Multimeter Signal Generator, 100MHz Bandwidth, 500MSa/s Sampling Rate, 20000 Counts

Name: OWON HDS2102S 3 in 1 Digital Oscilloscope Multimeter Signal Generator, 100MHz Bandwidth, 500MSa/s Sampling Rate, 20000 Counts
SKU: ER101010096
Price: 234.99 USD
Availability: InStock

As low as $234.99

In stock

Only %1 left

SKU

ER101010096

Skip to the end of the images gallery

OWON HDS2102S 3 in 1 Digital Oscilloscope Multimeter Signal Generator, 100MHz Bandwidth, 500MSa/s Sampling Rate, 20000 Counts

Skip to the beginning of the images gallery

Details

Highlights

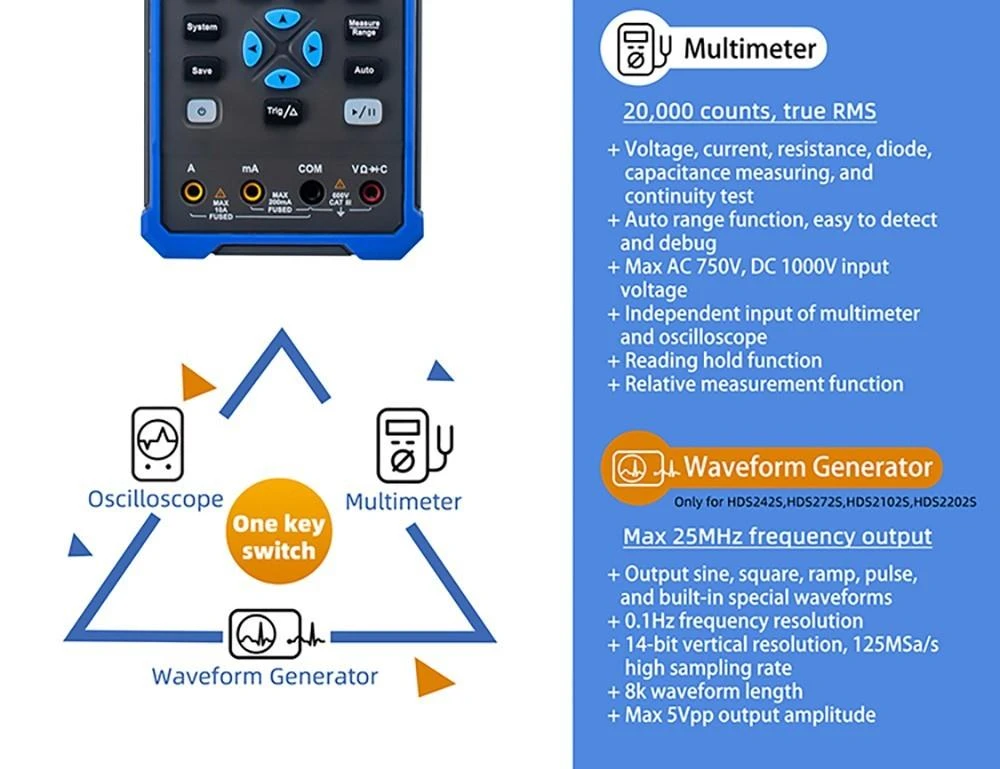

3-in-1 Handheld Oscilloscope

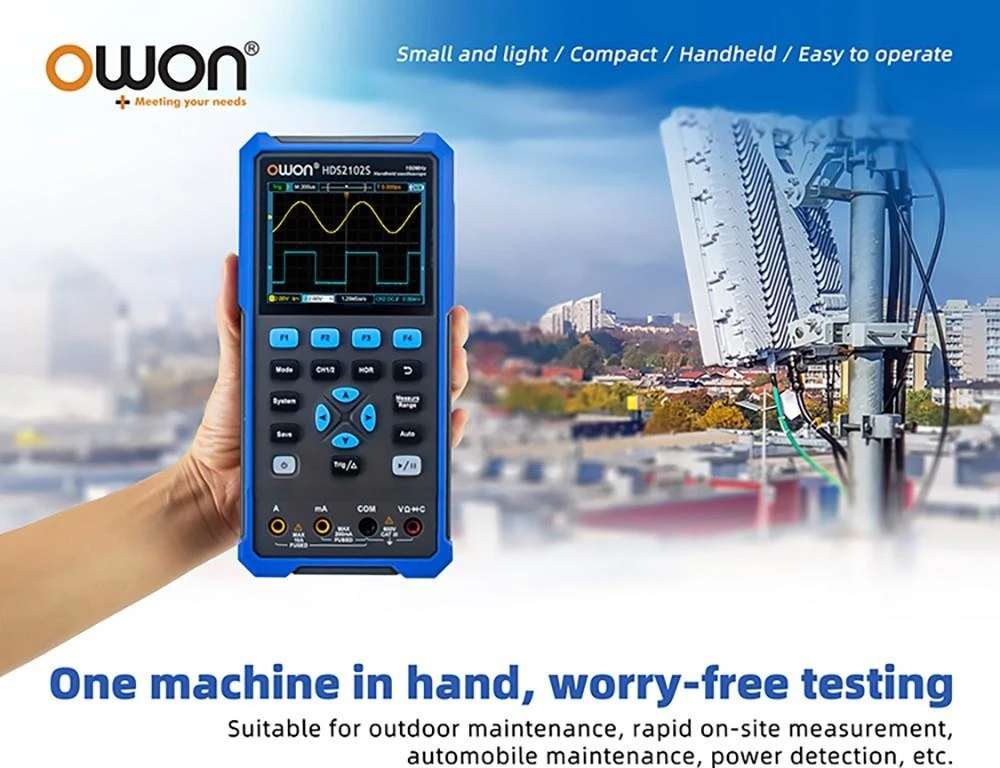

OWON HDS2102S is not only a digital oscilloscope but also a multimeter and a waveform generator. It is easy to operate and is suitable for outdoor maintenance, rapid on-site measurement, automobile maintenance, power detection, etc.

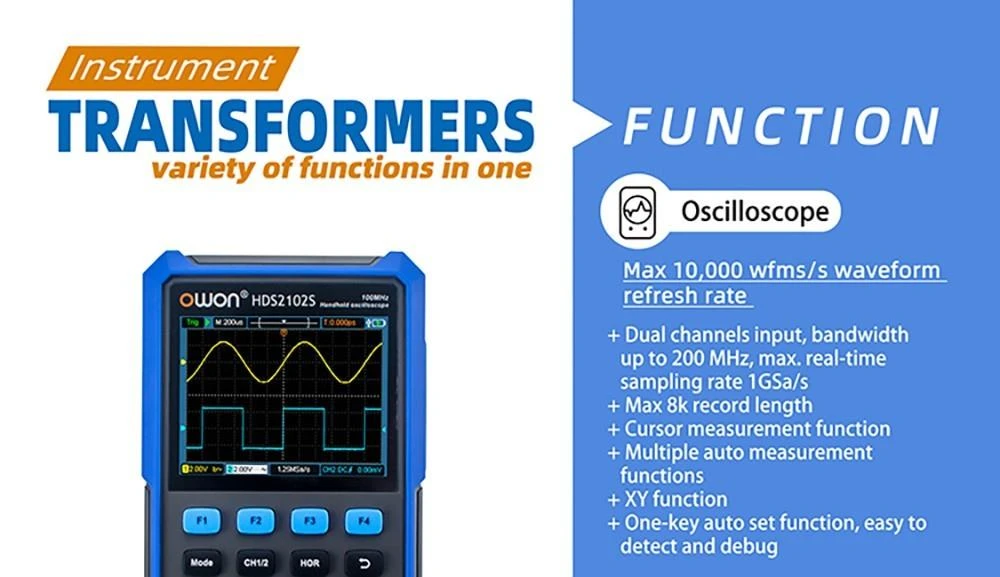

Digital Oscilloscope Functions

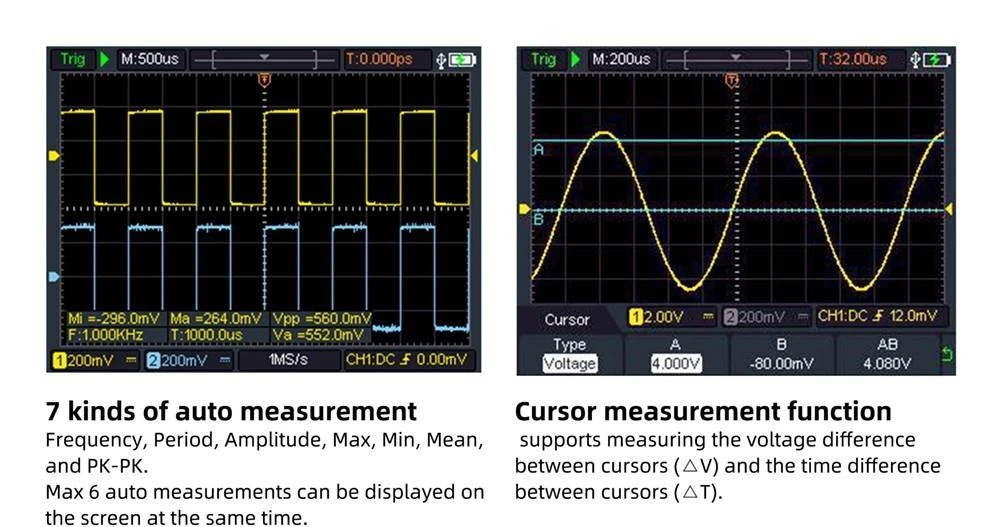

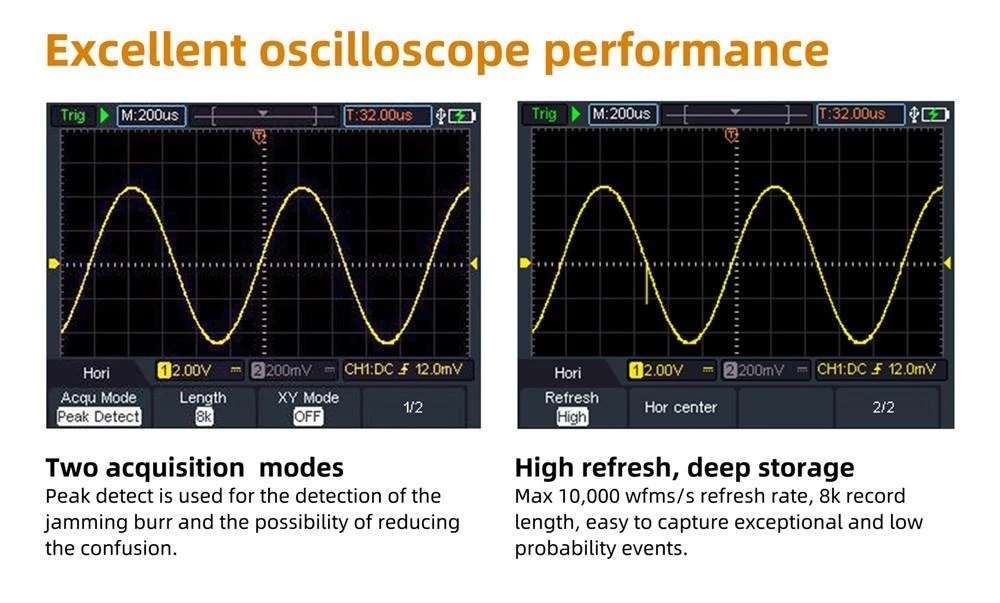

Features dual-channel input, 100MHz bandwidth, 500MSa/s real-time sampling rate, and max 8k record length. It also has a cursor measurement function and one key auto set function, easy to detect and debug.

Multimeter Functions

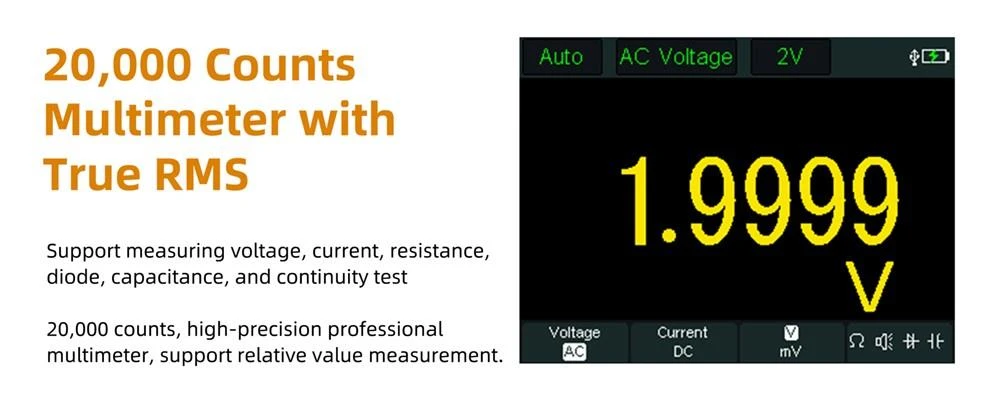

20000 counts true RMS multimeter features an auto-ranging function and reading hold function, it can be used to measure standard voltage, current, resistance, diode, capacitance, and continuity test. It configures max AC 750V and DC 1000V input voltage. Independent input of multimeter and oscilloscope support relative measurement function.

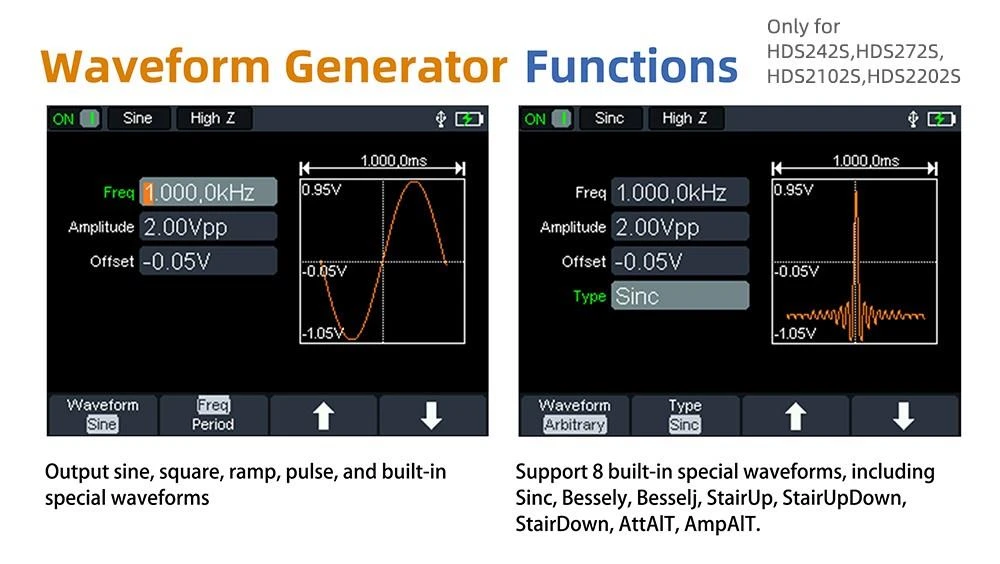

Waveform Generator Functions
Features max 25MHz frequency output, 0.1Hz resolution, 14-bit vertical resolution, 125MSa/s high sampling rate, 8K waveform length, and max 5Vpp output amplitude. It can output sine, square, ramp, pulse, and built-in special waveforms.

Specification

General	Brand: OWON Type: 3-in-1 Digital Oscilloscope Model: HDS2102S Color: Blue + Black

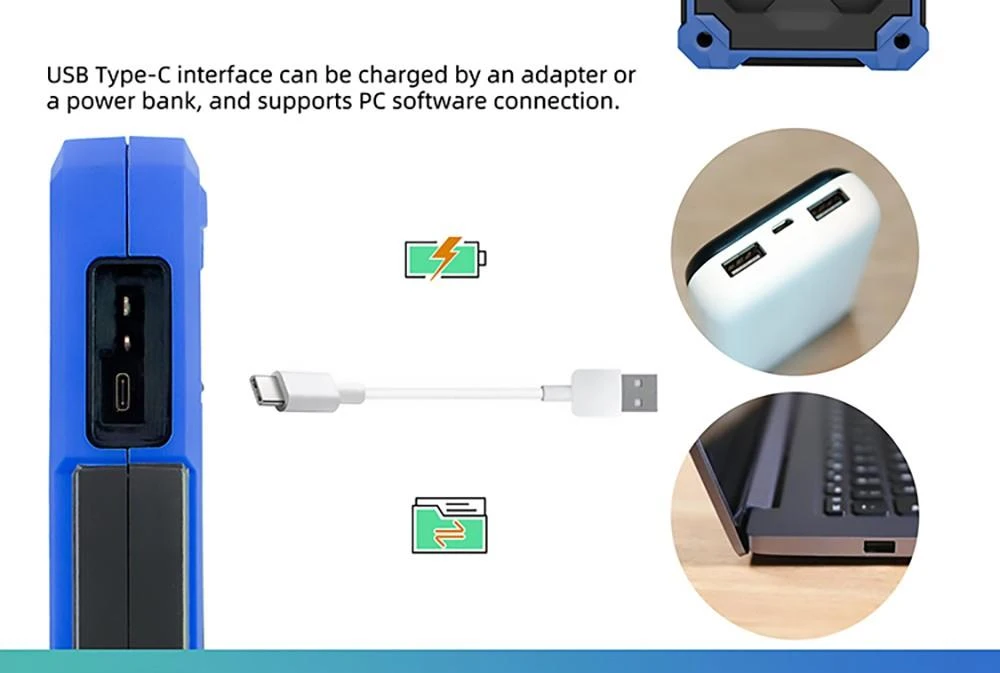

Specification	Oscilloscope Specifications: Bandwidth: 100MHz Bandwidth Limit (typical): 20MHz Channels: 2-CH Oscilloscope + 1-CH Generator Sample Rate: 500MSa/s Record Length: 8K Vertical Resolution: 8 bits Acquisition Model: Normal, Peak detect Display: 3.5-inch LCD Waveform Refresh Rate: 10,000 wfrms/s Input Coupling: DC, AC, and Ground Input Impedance: 1 MΩ±2%, in parallel with 16pF±10pF Probe Attenuation Factors: 1X,10X,100X,1000X Max. input Voltage: 400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation) Horizontal Scale: 2ns/div - 1000s/div, step by 1 - 2 - 5 Vertical Sensitivity: 10mV/div - 10V/div Trigger Type: Edge Trigger Modes: Auto, Normal, Single Automatic Measurement: Frequency, Period, Amplitude, Max, Min, Mean, PK-PK Communication Interface: USB Type-C Multimeter (Standard): Max. Resolution: 20,000 counts Testing Mode: Voltage, Current, Resistance, Capacitance, Diode, and Continuity test Input Impedance: 10MΩ Max Input Voltage: AC: 750V, DC: 1000V Max Input Current: DC: 10A, AC: 10A Diode: 0 - 2V Waveform Generator: Frequency Output: Sine: 0.1Hz - 25MHz Square: 0.1Hz - 10MHz Ramp: 0.1Hz - 1MHz Pulse: 0.1Hz - 5MHz Arbitrary: 0.1Hz - 5MHz Sampling Rate: 125MSa/s Channel: 1-CH Amplitude Range: 20mVpp - 5Vpp Vertical Resolution: 14bits Waveform Length: 8K Output Impedance: 50Ω

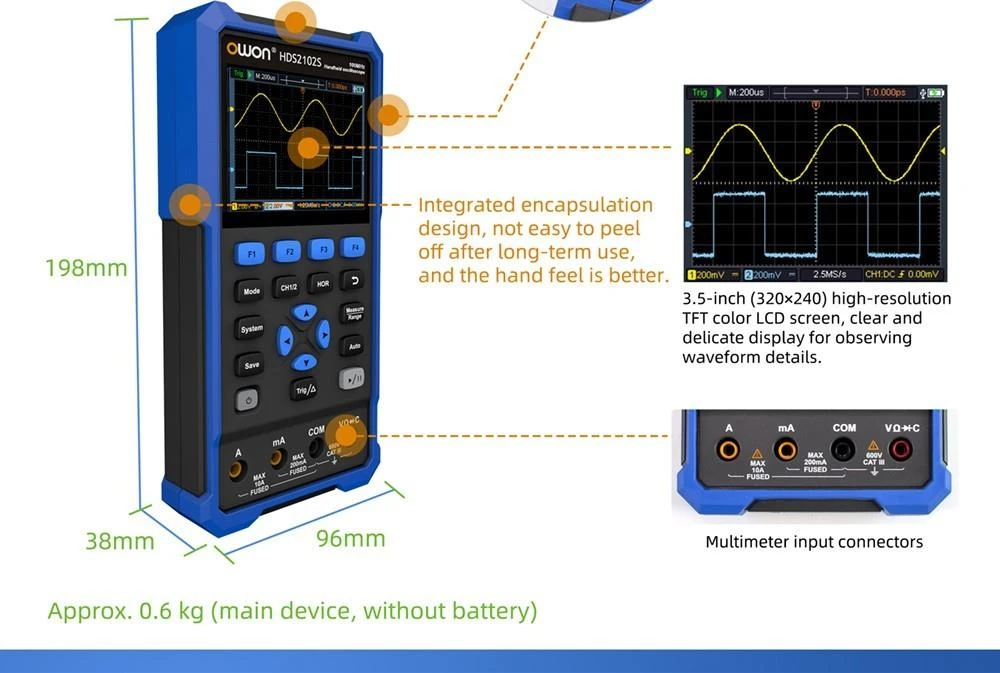

Weight & Size	Product Weight: 0.6kg Package Weight: 1.1kg Product Size(L x W x H): 19.8x9.6x3.8cm Package Size(L x W x H): 22x15x8.5cm
Package Contents	1 x 3-in-1 Digital Oscilloscope 1 x Probe Adjust 1 x Multimeter Lead 1 x Bag 1 x Probe 1 x BNC to Alligator Clip 1 x USB Cable 1 x Power Plug 1 x User Manual
