Raspberry Pi 3 Model B+/B Development Board

Name: Raspberry Pi 3 Model B+/B Development Board
SKU: 1000821003
Price: 94.99 USD
Availability: InStock

As low as $94.99

In stock

Only %1 left

SKU

1000821003

Skip to the end of the images gallery

Raspberry Pi 3 Model B+/B Development Board

Skip to the beginning of the images gallery

Details

Highlights

1.4GHz 64-bit quad-core processor, dual-band 2.4GHz and 5GHz wireless LAN. Bluetooth 4.2/BLE, faster Ethernet, and PoE support (with separate PoE HAT).

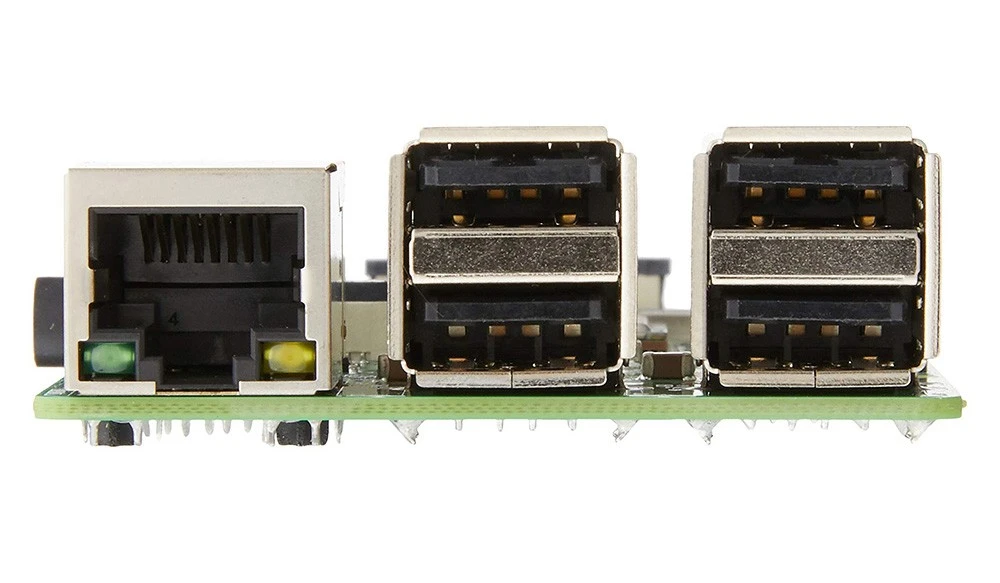

Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps), 4 × USB 2.0 ports and Extended 40-pin GPIO header.

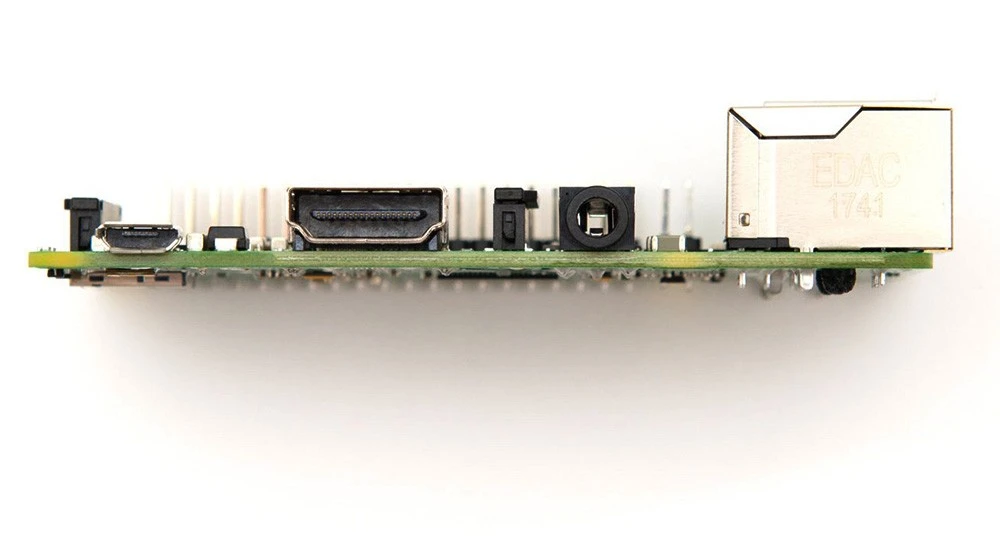

1 × full size HDMI, MIPI DSI display port, MIPI CSI camera port, 4 pole stereo output and composite video port.
1GB LPDDR2 SDRAM; Micro SD format for loading operating system and data storage. (Micro SD is Not included.)

The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range, boasting a 64-bit quad-core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT

The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market. The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.

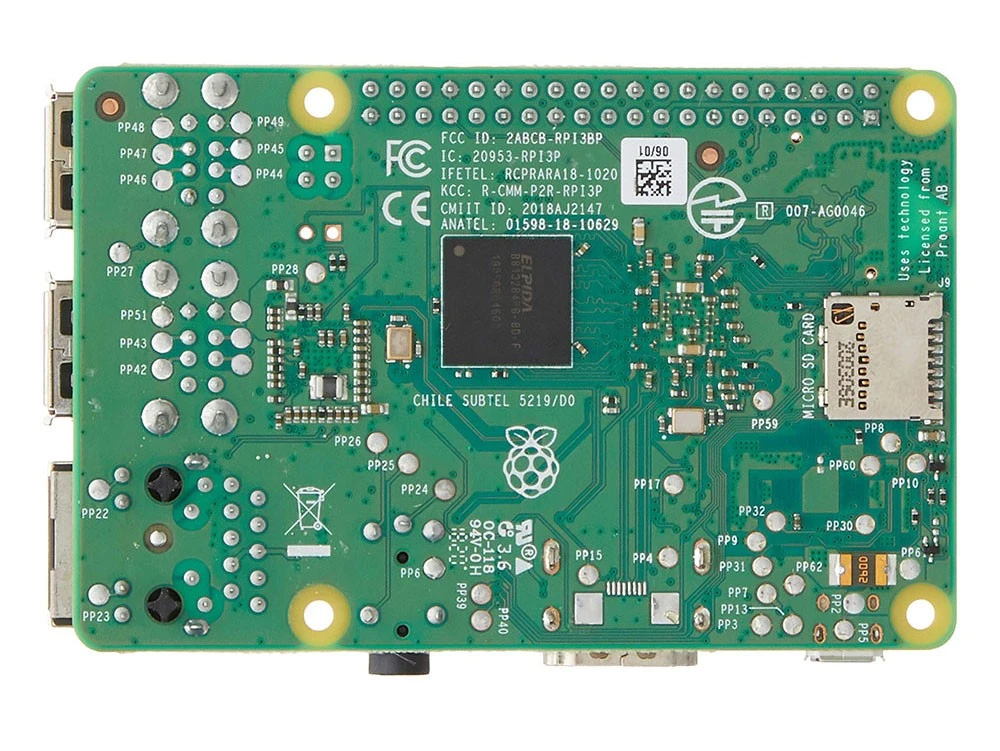

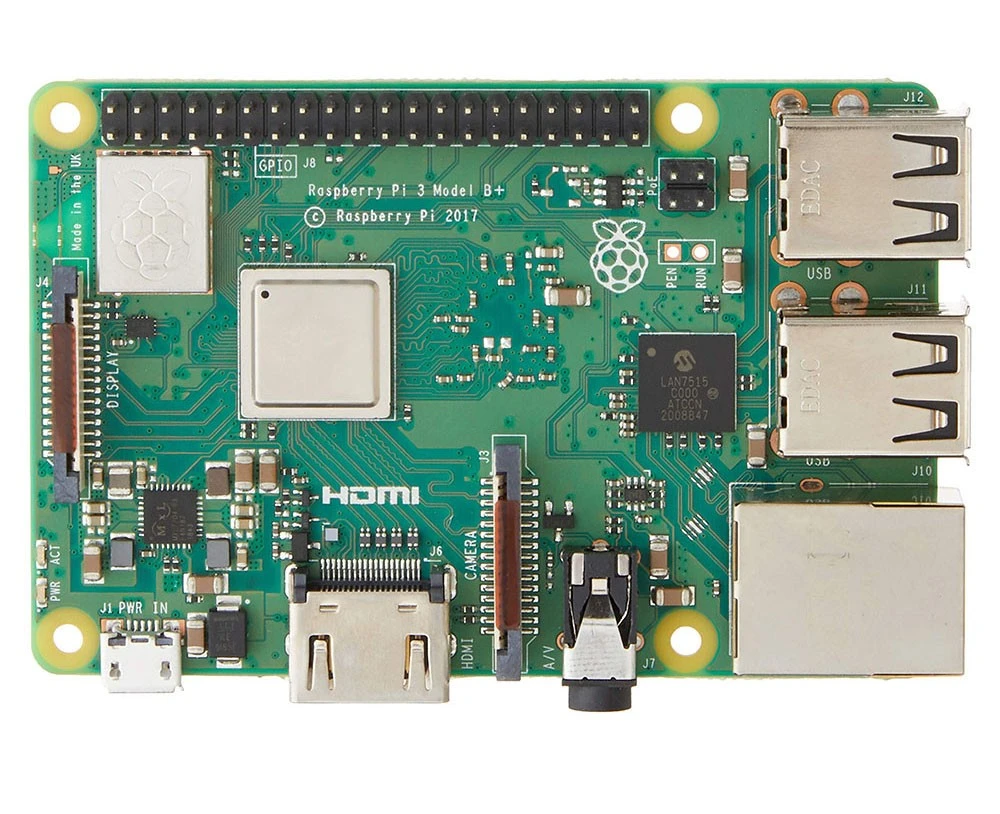

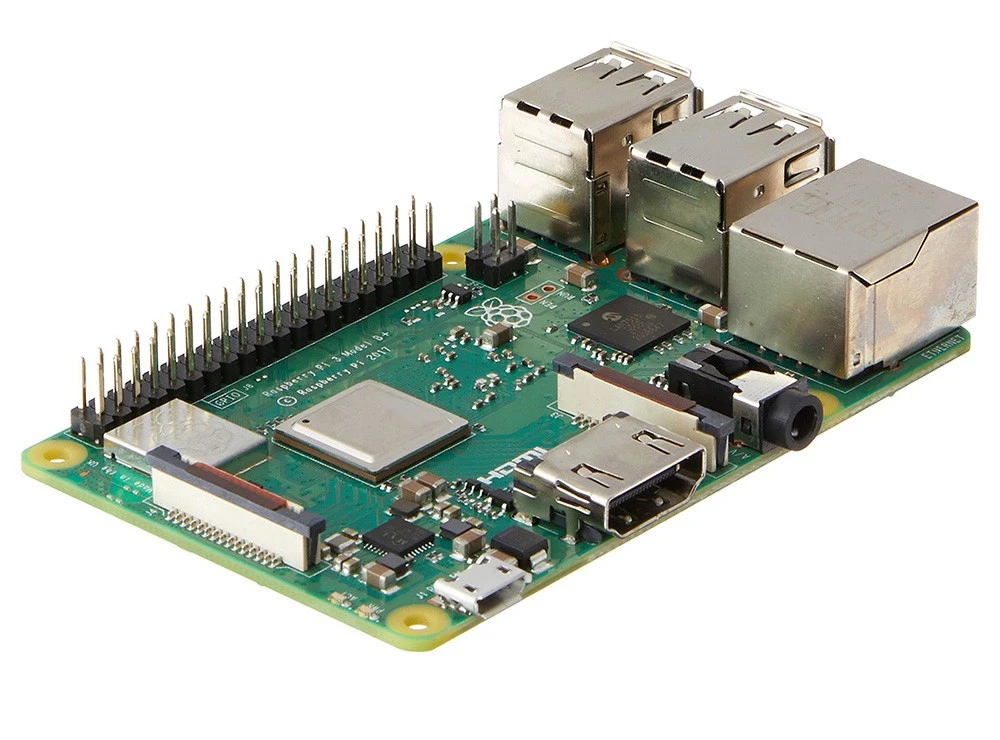

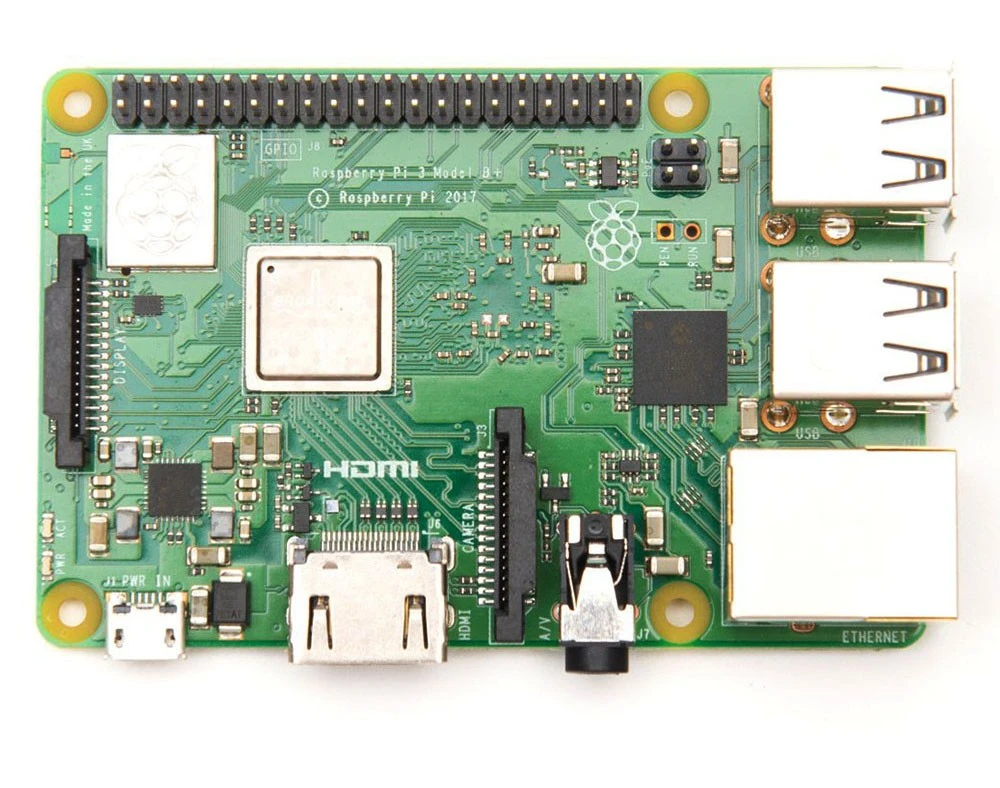

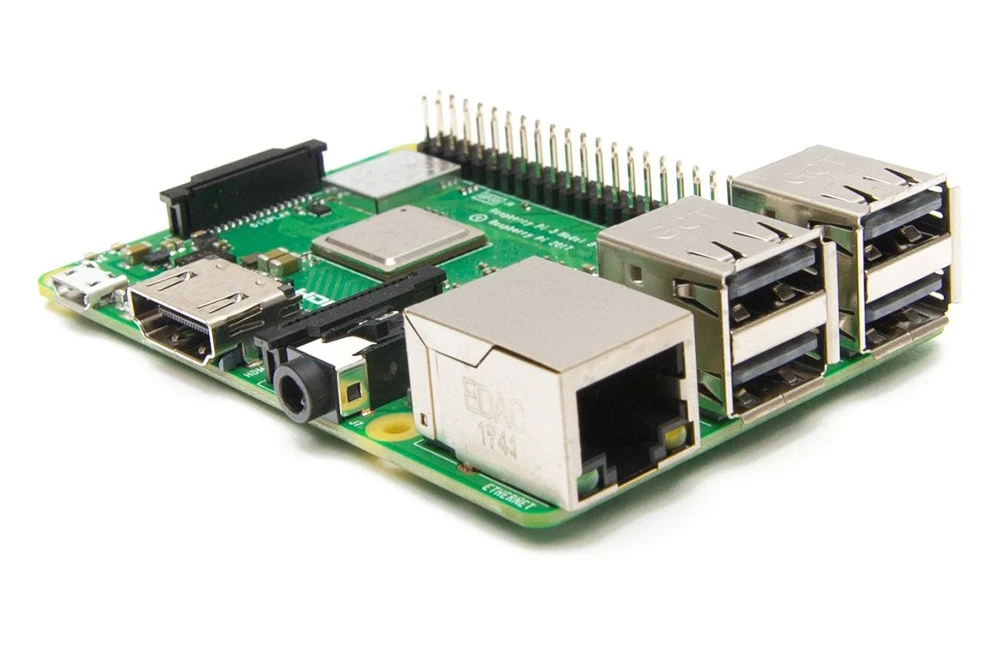

Raspberry Pi 3 Model B+ Development Board

Specification

General	Brand: Raspberry Pi Type: Development Board Model: 3B+ Color: Green
Specification	Processor: Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4GHz. Memory: 1GB LPDDR2 SDRAM. Connectivity: 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE; Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps);4 × USB 2.0 ports. Access: Extended 40-pin GPIO header. Video & sound: 1 × full size HDMI; MIPI DSI display port; MIPI CSI camera port; 4 pole stereo output and composite video port. Multimedia: H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30); OpenGL ES 1.1, 2.0 graphics. SD card support: Micro SD format for loading operating system and data storage. Input power: 5V/2.5A DC via micro USB connector; 5V DC via GPIO header; Power over Ethernet (PoE)–enabled (requires separate PoE HAT). Environment: Operating temperature, 0–50°C
Weight & Size	Product Weight: 200g Package Weight: 300g Package Size(L x W x H): 12.5 x 8 x 4cm
Package Contents	1 x Development Board 1 x User Manual
